You may notice problems like a spongy brake pedal or reduced braking power when your truck’s Brake Master Cylinder starts to fail. Watch for brake fluid leaks and dashboard warning lights. These signs can help you spot brake issues early and keep your commercial truck safe on the road.
Key Takeaways
- Watch for signs like a soft brake pedal, brake fluid leaks, or warning lights to catch brake master cylinder problems early and keep your truck safe.
- Always follow safety steps when repairing, remove the old master cylinder carefully, and install a new or rebuilt one using new seals to prevent leaks.
- Bleed the brake system after replacement to remove air, check for leaks, and test the brakes to ensure firm pedal feel and reliable stopping power.
Brake Master Cylinder Diagnosis in Commercial Trucks
Common Symptoms of Failure
You need to recognize the early signs of a failing brake master cylinder to keep your commercial truck safe. Watch for these common symptoms:
- Spongy or soft brake pedal: The pedal may feel different when you press it.
- Reduced braking power: Your truck may take longer to stop.
- Brake fluid leaks: You might see fluid under the truck or near the master cylinder.
- Dashboard warning lights: The brake warning light may turn on.
Tip: If you notice any of these symptoms, check your truck’s brake system right away. Early detection can prevent bigger problems.
In-Vehicle Diagnostic Procedures
You can perform several checks while the brake master cylinder is still installed in your truck. Follow these steps:
- Check the brake fluid level in the reservoir. Low fluid may point to a leak.
- Inspect the area around the master cylinder for any visible leaks or wet spots.
- Press the brake pedal and observe its response. A pedal that sinks slowly or feels mushy can signal internal problems.
- Start the engine and apply the brakes. Listen for unusual noises and check if the pedal holds firm pressure.
| Step | What to Look For | What It Means |
|---|---|---|
| 1 | Low brake fluid | Possible leak or worn seals |
| 2 | Fluid around master cylinder | External leak |
| 3 | Spongy or sinking pedal | Internal seal failure |
| 4 | Noises or weak pedal | Air in system or cylinder issue |
Note: Always use the correct type of brake fluid for your truck. Mixing fluids can damage the brake master cylinder.
Bench Testing the Brake Master Cylinder
If you remove the brake master cylinder from your truck, you can test it on a workbench. This helps confirm if the part needs repair or replacement.
- Secure the brake master cylinder in a vise.
- Fill the reservoir with clean brake fluid.
- Use a suitable tool to push the piston in and out.
- Watch for smooth movement and check for leaks around the seals.
- Block the outlet ports and apply pressure. The piston should not move if the seals are good.
If you see fluid leaking or the piston does not hold pressure, you should replace the brake master cylinder.
Brake Master Cylinder Repair and Replacement Steps
Safety Precautions for Commercial Truck Repairs
You must always put safety first when working on a commercial truck. Wear safety glasses and gloves to protect your eyes and hands. Park the truck on a flat surface and set the parking brake. Place wheel chocks behind the tires to prevent the truck from moving. Disconnect the battery to avoid electrical hazards. Make sure you have the right tools and equipment before you start. If you work in a shop, follow all safety rules and use proper lifting equipment for heavy parts.
Tip: Never work under a truck that is only supported by a jack. Always use jack stands or ramps for extra safety.
Removing the Faulty Brake Master Cylinder
Start by locating the brake master cylinder in the engine compartment. You will usually find it mounted on the firewall, connected to the brake booster. Use a clean rag to wipe away dirt and debris around the area. This helps keep the brake system clean during repairs.
Follow these steps to remove the faulty part:
- Remove the electrical connectors from the brake fluid level sensor, if equipped.
- Use a wrench to loosen and disconnect the brake lines from the master cylinder. Plug the lines to prevent fluid loss.
- Unbolt the master cylinder from the brake booster or mounting bracket.
- Carefully lift the brake master cylinder away from the truck.
Place the old part on a clean surface. Inspect the mounting area for any signs of damage or corrosion.
Installing a New or Rebuilt Brake Master Cylinder

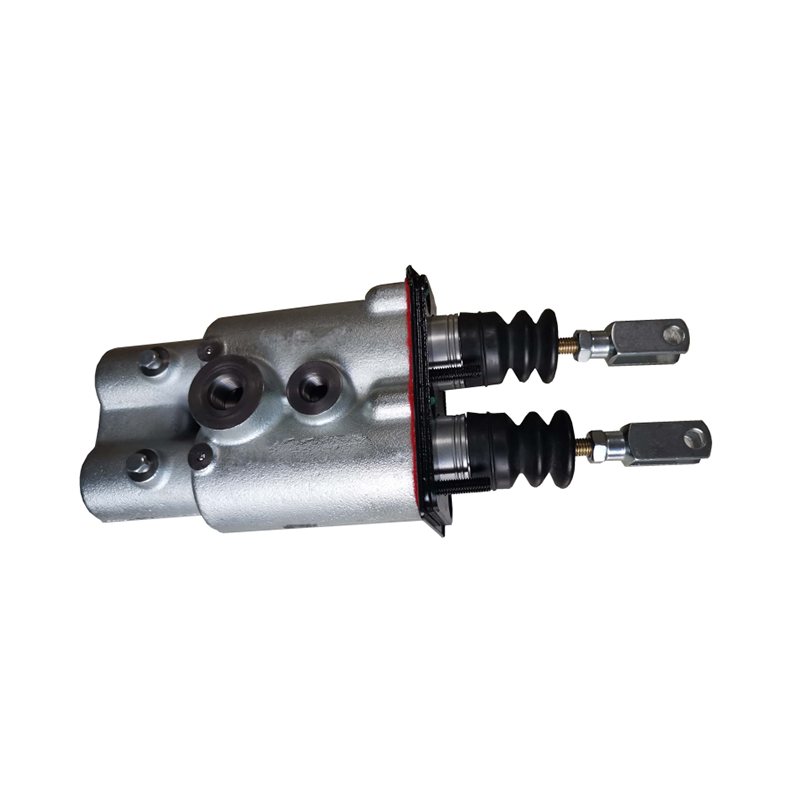

Choose a replacement that matches your truck’s specifications. The FANGJIE Brake Master Cylinder 73671156 87315873 47777898 fits many commercial trucks and offers reliable performance. Before installation, compare the new part with the old one to ensure proper fit.
Here is a simple installation guide:
- Bench bleed the new brake master cylinder before mounting it. This removes air from the unit and helps prevent spongy brakes.
- Position the new or rebuilt master cylinder onto the mounting bracket or brake booster.
- Secure it with the mounting bolts and tighten them to the manufacturer’s recommended torque.
- Reconnect the brake lines and tighten them securely.
- Attach any electrical connectors for the fluid level sensor.
Note: Always use new seals or gaskets when installing a new brake master cylinder. This helps prevent leaks.
Bleeding the Brake System
You must bleed the brake system after replacing the master cylinder. This process removes air from the brake lines and restores firm pedal feel.
Follow these steps to bleed the brakes:
- Fill the master cylinder reservoir with fresh brake fluid.
- Start at the wheel farthest from the master cylinder, usually the passenger-side rear wheel.
- Have a helper press the brake pedal while you open the bleeder valve.
- Let the fluid and air escape, then close the valve before your helper releases the pedal.
- Repeat this process at each wheel until you see clear, bubble-free fluid.
| Step | Action | Purpose |
|---|---|---|
| 1 | Fill reservoir | Prevent air from entering |
| 2 | Start at farthest wheel | Remove air efficiently |
| 3 | Press pedal and open valve | Release trapped air |
| 4 | Close valve, release pedal | Avoid air re-entry |
| 5 | Repeat for all wheels | Ensure complete bleeding |
Check the brake pedal for firmness. Add more fluid if needed. Test the brakes at low speed before returning the truck to service.
Post-Repair Checks and Preventing Future Brake Master Cylinder Issues
Verifying Brake System Performance
After you finish the repair, always check the brake system before driving the truck. Press the brake pedal several times. Make sure it feels firm and does not sink to the floor. Start the engine and test the brakes at low speed in a safe area. The truck should stop smoothly and quickly. If you notice any strange noises or the pedal feels soft, stop and inspect the system again. You want to confirm that the Brake Master Cylinder works as it should.
Inspecting for Leaks and Fluid Levels
Look around the master cylinder and brake lines for any signs of leaks. Even a small drip can cause problems later. Check the brake fluid level in the reservoir. The fluid should reach the “MAX” line. If you see the level drop after a short drive, inspect for leaks again. Use a clean cloth to wipe away any spilled fluid. Keeping the system clean helps you spot leaks early.
Tip: Always use the correct type of brake fluid for your truck. Mixing fluids can damage the system.
Maintenance Tips for Commercial Trucks
Regular maintenance keeps your truck safe and reliable. Follow these tips:
- Inspect the brake system every month.
- Replace brake fluid as recommended by the manufacturer.
- Check for worn or damaged parts during every service.
- Use quality parts like the FANGJIE master cylinder for best results.
- Train drivers to report any brake issues right away.
A good maintenance routine helps prevent future problems and keeps your fleet on the road.
- Always check the problem before you start repairs.
- Use safety gear and follow truck repair rules.
- Inspect your truck often.
Regular care helps you avoid brake problems and keeps your fleet safe on the road.
FAQ
How often should you check the brake master cylinder in your commercial truck?
You should inspect the brake master cylinder every month. Regular checks help you catch leaks or wear before they cause bigger problems.
What type of brake fluid should you use with the FANGJIE master cylinder?
Always use the brake fluid recommended by your truck’s manufacturer. Using the correct fluid keeps your brake system working safely and smoothly.
Can you reuse old seals when installing a new brake master cylinder?
You should always use new seals or gaskets. Old seals may leak and cause brake failure. New seals help keep your brake system safe.
