10-Step SOP for Comprehensive Commercial Vehicle Brake System Inspection

Purpose and Scope of the Brake System SOP

Standard operating procedures (SOPs) for commercial vehicle brake systems serve as the foundational framework for heavy-duty fleet maintenance, mitigating legal liability and preventing catastrophic mechanical failures. Because brake-related anomalies consistently account for over 25% of all out-of-service (OOS) orders during roadside commercial inspections, instituting a rigid, data-driven inspection protocol is non-negotiable for fleet operators. A structured SOP eliminates diagnostic guesswork, ensuring that every technician follows the exact same sequence of evaluation, regardless of their individual experience level.

Executing a comprehensive brake system inspection requires moving beyond superficial visual checks. It demands a systematic evaluation of pneumatic pressures, friction material geometries, and electronic control unit (ECU) telemetry. By standardizing this diagnostic workflow, modern fleets can achieve a target out-of-service defect rate of less than 2%, significantly outperforming the industry baseline while optimizing the total cost of ownership (TCO) for friction and pneumatic components.

Inspection objectives

The primary objective of this SOP is to systematically identify component degradation before it breaches legal regulatory limits or compromises vehicle stopping power. By enforcing a standardized diagnostic workflow, the protocol aims to optimize the lifecycle of friction materials and pneumatic valves, ensuring balanced braking force distribution across all wheel ends. Balanced braking is critical to preventing localized thermal events—such as brake fade or wheel-end fires—which occur when a single axle is forced to absorb a disproportionate amount of kinetic energy due to out-of-adjustment actuators elsewhere on the chassis.

Furthermore, the SOP serves as a compliance mechanism. The objective is not merely to repair broken parts, but to generate a defensible, auditable paper trail of maintenance activities. This documentation shields the fleet from negligence claims following an incident and guarantees that the vehicle operates safely under maximum gross combined weight ratings (GCWR) during severe duty cycles.

Vehicles and brake systems covered

This protocol encompasses all commercial motor vehicles (CMVs) with a Gross Vehicle Weight Rating (GVWR) exceeding 26,000 pounds. This includes Class 7 and Class 8 heavy-duty tractors, rigid vocational trucks, and articulated trailers. Because fleet compositions vary, the SOP is designed to be architecture-agnostic, providing specific inspection pathways for the three primary heavy-duty braking formats: S-cam air drum brakes, air disc brakes (ADB), and medium-duty hydraulic architectures.

Additionally, the scope extends to the advanced electronic overlays that govern modern heavy-duty braking dynamics. The SOP integrates detailed diagnostics for Anti-lock Braking Systems (ABS), Electronic Braking Systems (EBS), and Electronic Stability Control (ESC) modules. Covering these interconnected systems ensures that mechanical foundation brakes and their electronic controllers are evaluated as a single, cohesive safety apparatus rather than isolated components.

Standards and Specifications

A rigorous brake inspection SOP must be anchored in stringent regulatory frameworks and original equipment manufacturer (OEM) specifications. Compliance is not merely a legal obligation but a baseline for operational safety, requiring technicians to evaluate components against exact dimensional, thermal, and pressure thresholds. Operating outside of these specifications introduces severe liabilities and dramatically increases stopping distances.

Regulatory requirements and OEM limits

In North America, commercial vehicle brake systems must adhere to Federal Motor Carrier Safety Administration (FMCSA) Part 393, specifically section 393.47, which governs brake actuators, slack adjusters, and friction material minimums. Inspectors must strictly apply the Commercial Vehicle Safety Alliance (CVSA) Out-of-Service Criteria, which dictates that a commercial vehicle must be immediately grounded if 20% or more of its service brakes are deemed defective. A single defective brake on a steering axle, however, triggers an automatic OOS order regardless of the total brake count.

Legal limits are absolute minimums, but OEM specifications often prescribe replacement tolerances that are significantly tighter to ensure a safety margin during operational duty cycles. For example, while a Type 30 standard stroke brake chamber reaches its legal limit at 2.0 inches of pushrod travel, fleet maintenance policies often require readjustment or auto-slack adjuster replacement if the stroke exceeds 1.75 inches. Technicians must be trained to recognize the distinction between a legal minimum and a fleet-mandated preventative maintenance threshold.

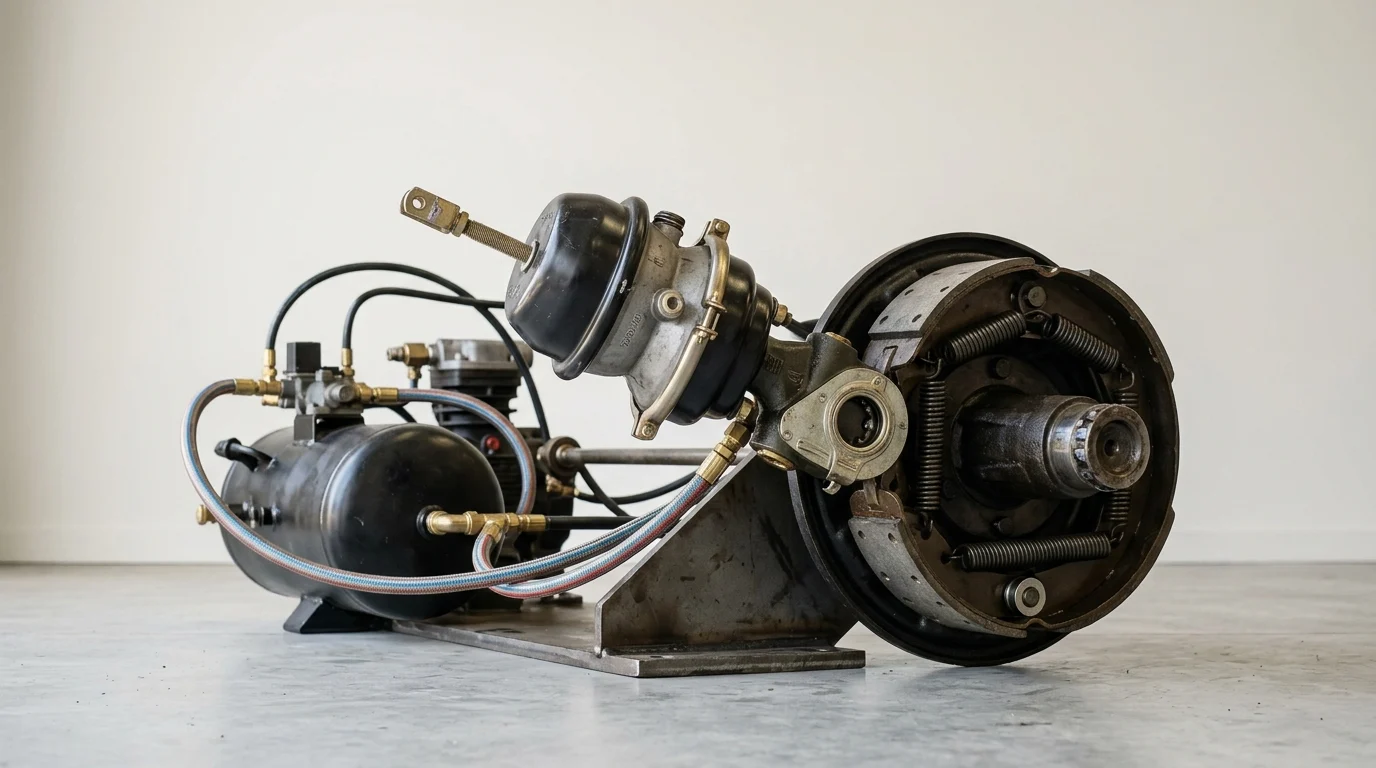

Air, hydraulic, ABS, EBS, and disc brake criteria

Different braking architectures demand highly specific evaluation criteria. Pneumatic systems must be tested for air pressure build-up time; federal regulations mandate that system pressure must rise from 85 psi to 100 psi within 45 seconds at maximum governed engine RPM. For air disc brakes (ADB), technicians must monitor rotor minimum thickness—typically discarding at 37mm for a standard 45mm new rotor—and ensure pad friction material does not fall below the 2.0mm (0.08 inches) minimum. ABS and EBS criteria require verifying ECU voltage supply, which must maintain a minimum of 9.5V for 12V systems under load.

Hydraulic brake systems on Class 7 vehicles require inspection of fluid boiling points, moisture content (which must remain below 3%), and master cylinder vacuum assist integrity. For EBS-equipped trailers, the CAN bus communication lines must exhibit exactly 120 ohms of terminating resistance; any deviation indicates a compromised data link that could delay pneumatic valve actuation during a panic stop.

10-Step Brake Inspection Procedure

Executing a flawless brake inspection requires a methodical, step-by-step approach to eliminate diagnostic omissions. The 10-step procedure moves logically from static safety preparations to deep mechanical measurements, and concludes with dynamic functional validation. Strict adherence to this sequence prevents technicians from overlooking critical subsystem interactions.

Steps 1–3: Vehicle intake and safety setup

Step 1: Vehicle Intake and Immobilization. The technician must secure the vehicle on a level, reinforced concrete surface. Wheel chocks must be firmly applied to both the front and rear of the tandem axle tires. The parking brakes must then be fully released to allow for accurate slack adjuster measurement and wheel-end rotation.

Step 2: System Purge and Reservoir Assessment. Technicians must manually drain the air tanks (wet tank first, followed by primary and secondary) to check for moisture, oil emulsion, or desiccant contamination. The presence of oil or excessive water indicates an impending air dryer failure or compressor blow-by.

Step 3: High-Level Visual Assessment. Conduct a perimeter walk-around to identify obvious structural damage. This includes searching for hanging pneumatic lines, cracked gladhands, or audible air leaks that exceed the allowable 2 psi per minute static drop for a single vehicle.

Steps 4–7: Components, wear, and measurements

Step 4: Friction Material Measurement. Measure brake pad or shoe lining thickness using calibrated gauges. Drum brake linings must exceed 0.25 inches at the shoe center, while continuous monitoring for uneven wear patterns (tapered wear) is required to identify seized caliper slide pins or bound S-cam bushings.

Step 5: Drum and Rotor Integrity. Inspect drums for heat checking, deep scoring, or structural cracking. Calipers must be used to ensure drums do not exceed the maximum discard diameter (e.g., 16.120 inches for a standard 16.5-inch drum). Rotors must be checked for lateral runout and thermal spotting.

Step 6: Stroke and Actuator Geometry. Measure the applied pushrod stroke with the system pressurized to exactly 90 to 100 psi. Ensure the slack adjuster angle relative to the pushrod is approximately 90 degrees when the brake is fully applied to guarantee maximum mechanical advantage.

Step 7: Pneumatic and Hydraulic Circuitry. Inspect all thermoplastic hoses and braided steel lines for chafing, bulging, or exposed reinforcing plies. Any line that compromises the pressure boundary or exhibits a kink restricting volumetric airflow must be immediately replaced.

Steps 8–10: Functional testing and validation

Step 8: Applied Leak-Down Test. With the air system fully charged to 120 psi and the engine turned off, apply a full, continuous service brake application. The system pressure drop must not exceed 3 psi per minute for single power units, or 4 psi per minute for tractor-trailer combination vehicles.

Step 9: Electronic Diagnostics. Interface with the vehicle’s diagnostic port (9-pin J1939) using a heavy-duty scan tool. Technicians must read and clear historical ABS/EBS fault codes, verify wheel speed sensor continuity, and perform automated modulator valve actuation tests to ensure all solenoids are firing correctly.

Step 10: Dynamic Validation. Perform a low-speed functional yard test or utilize an in-ground roller brake dynamometer. This final step verifies balanced braking force across all wheel ends, ensuring no lateral pulling, delayed application, or slow pneumatic exhaust occurs during real-world simulation.

Tools, Measurements, and Documentation

The efficacy of a commercial vehicle brake inspection is inextricably linked to the precision of the tooling utilized and the fidelity of the subsequent documentation. Relying on subjective visual estimates is unacceptable in heavy-duty maintenance; technicians must leverage calibrated metrology equipment and standardized reporting protocols to ensure compliance and traceability.

Required gauges and diagnostic tools

Essential mechanical metrology equipment includes digital micrometers for rotor thickness, inside micrometers or specialized drum gauges for internal diameter, and standardized Go/No-Go gauges for pushrod stroke verification. Dial indicators equipped with magnetic bases are mandatory for measuring wheel bearing end-play and rotor lateral runout. Excessive runout—typically anything exceeding 0.002 inches—will cause severe brake judder and premature pad degradation.

On the electronic front, heavy-duty diagnostic scan tools capable of interfacing with standard J1939, J1708, and CAN bus protocols are required. These tools must possess bidirectional control capabilities to manually actuate ABS valves, test trailer EBS communication lines, and retrieve proprietary OEM fault data that standard OBD-II scanners cannot access.

Measurement methods and service limits

Measurements must be captured systematically at multiple points to account for uneven wear or thermal distortion. For instance, rotor thickness should be measured at four equidistant points around the circumference, at least 10mm inboard from the outer friction edge to avoid the rusted lip. When measuring applied stroke, the mechanic must mark the pushrod at the chamber face with the brakes released, apply 90 to 100 psi of service air, and measure the distance to the new mark.

Any deviation beyond the specified service limit mandates immediate adjustment or component replacement. Technicians must not average measurements; the single worst measurement on any component dictates its pass/fail status.

Inspection forms, photos, and fault-code reports

Defensible documentation protects the fleet from liability in the event of an accident and provides invaluable data for predictive maintenance algorithms. Technicians must complete digital inspection forms that mandate the entry of exact numerical measurements (e.g., entering ’1.75 inches’ rather than clicking a ‘pass’ checkbox). Photographic evidence of compromised components, such as cracked friction material or chafed hoses, should be captured via tablet and appended directly to the digital work order.

Furthermore, all electronic diagnostic reports, including historical fault codes and ECU voltage logs, must be uploaded to the fleet’s computerized maintenance management system (CMMS). Utilizing standard Vehicle Maintenance Reporting Standards (VMRS) codes allows fleet managers to track specific failure trends over time, enabling data-driven decisions regarding parts procurement and OEM spec adjustments.

Inspection Frequency and Escalation

Establishing an optimal brake inspection cadence requires moving beyond static time-based intervals and adopting a dynamic approach tailored to vehicle utilization. Furthermore, clear escalation pathways must be established to empower technicians to ground unsafe assets without administrative friction, ensuring that economic pressures never override mechanical safety limits.

Frequency by duty cycle, load, terrain, and route

Inspection intervals must be calibrated against the vehicle’s specific duty cycle, payload profile, and operating environment. Long-haul, over-the-road (OTR) tractors operating predominantly on flat interstate routes experience fewer brake applications per mile and may only require comprehensive foundation brake inspections every 25,000 to 30,000 miles. However, the pneumatic system on these vehicles must still be drained and visually checked during every pre-trip inspection.

Conversely, vocational vehicles—such as refuse trucks, logging platforms, or bulk aggregate haulers—endure severe stop-and-go cycles, heavy payloads, and abrasive environments. These assets necessitate rigorous, full-system inspections every 5,000 to 10,000 miles, or at minimum on a monthly basis. Fleets traversing mountainous terrain with sustained downgrades must also factor in thermal degradation, increasing the frequency of rotor, drum, and caliper structural assessments to prevent heat-induced failures.

Technician escalation and repair decisions

When an inspection reveals a defect approaching or exceeding statutory limits, the SOP must dictate a strict, unambiguous escalation protocol. Technicians must possess the absolute authority to lock out and tag out (LOTO) a commercial vehicle if it triggers any CVSA 20% defective brake criterion. No vehicle meeting OOS criteria may be dispatched under any circumstances.

For marginal wear—such as brake linings measuring 0.30 inches, which is legal but rapidly approaching the 0.25-inch minimum—the system should trigger an automated escalation to the maintenance manager. This allows the fleet to schedule proactive replacement before the next preventative maintenance (PM) cycle, minimizing unscheduled downtime. Repair decisions must always prioritize OEM-approved friction compounds and matched pneumatic valves to ensure the engineered brake torque balance is maintained seamlessly across the entire tractor-trailer combination.

Key Takeaways

• Use a fixed brake inspection sequence so every technician evaluates pneumatic pressure, friction wear, mechanical adjustment, and electronic controls consistently.
• Prioritize brake inspections because brake-related defects account for more than 25% of roadside out-of-service orders for commercial vehicles.
• Apply the SOP to vehicles over 26,000 pounds GVWR, including Class 7 and Class 8 tractors, vocational trucks, and trailers.
• Inspect S-cam drum brakes, air disc brakes, hydraulic systems, ABS, EBS, and ESC as one integrated safety system rather than separate components.
• Maintain clear inspection and repair records to support compliance, reduce liability, and verify that vehicles remain safe under maximum GCWR operating conditions.
• Set a measurable fleet goal, such as keeping out-of-service brake defects below 2%, to track maintenance quality and improve total cost of ownership.

Frequently Asked Questions

How often should commercial vehicle brake systems be inspected?

Brake systems should be checked during every pre-trip and post-trip inspection, with scheduled detailed inspections based on fleet duty cycle, mileage, OEM guidance, and regulatory requirements. Severe-duty trucks and heavy trailers may require more frequent checks.

What vehicles does this brake inspection SOP apply to?

It applies mainly to commercial motor vehicles over 26,000 pounds GVWR, including Class 7 and Class 8 tractors, vocational trucks, and trailers using S-cam air drum brakes, air disc brakes, or medium-duty hydraulic systems.

Why is a standardized brake inspection procedure important?

A standardized SOP reduces diagnostic guesswork, ensures every technician follows the same process, supports compliance documentation, and helps fleets find brake defects before they become out-of-service violations or safety failures.

Which brake components should technicians inspect closely?

Technicians should inspect friction material, drums or rotors, calipers, chambers, slack adjusters, hoses, pneumatic valves, wheel cylinders, master cylinders, and electronic systems such as ABS, EBS, and ESC where equipped.

What are common causes of commercial vehicle brake imbalance?

Brake imbalance can result from out-of-adjustment slack adjusters, worn friction material, sticking calipers, air leaks, faulty brake chambers, contaminated linings, or valve issues that create uneven braking force across axles.
