From Casting to Machining: Brake Caliper Housing Manufacturing Process

The manufacturing process of a brake caliper housing involves complex metallurgical casting and precision CNC machining to ensure safety and durability in commercial vehicle braking systems. This article provides a technical overview of how raw materials are transformed into high-performance components suitable for heavy-duty trucks and buses.

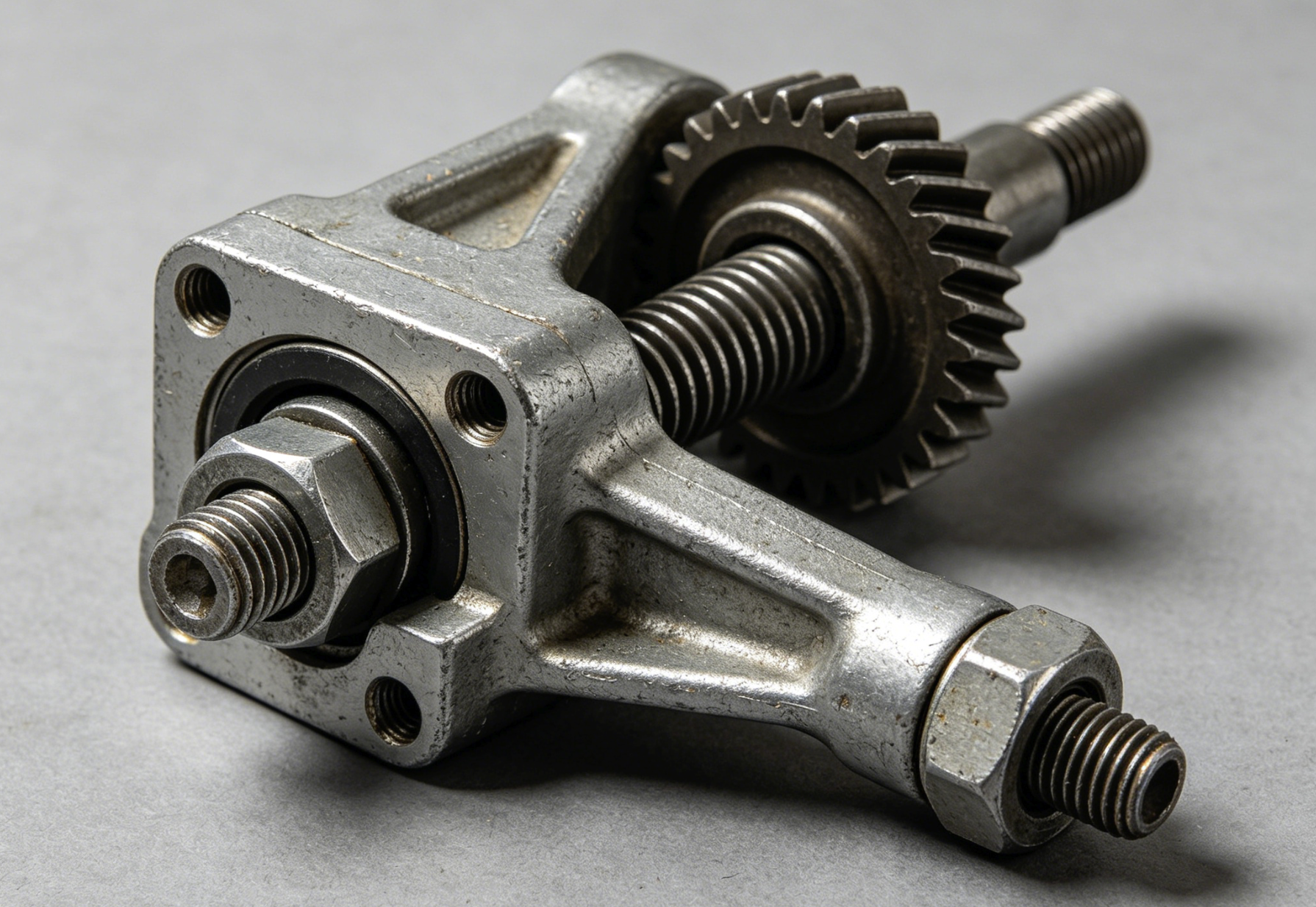

The Critical Role of Material Selection in Caliper Production

Brake caliper housings for commercial vehicles must withstand extreme thermal stress and high hydraulic pressure. Most industry-leading manufacturers utilize Ductile Iron (Spheroidal Graphite Iron), specifically grades like GJS-400-15 or GJS-500-7, due to their superior tensile strength and vibration-damping properties. According to the Society of Automotive Engineers (SAE International), material integrity in braking components is the primary factor in preventing catastrophic failure under load.

Compared to gray iron, ductile iron provides higher ductility, which prevents the housing from cracking during emergency braking maneuvers. For aftermarket suppliers focusing on air brake calipers, maintaining strict alloy compositions is essential for meeting international safety standards.

Phase 1: High-Precision Casting Processes

The manufacturing journey begins in the foundry, where the raw shape of the housing is created. For commercial vehicle applications, green sand casting or shell molding are the preferred methods. Shell molding offers a better surface finish and tighter dimensional tolerances, which reduces the amount of material that must be removed during the subsequent machining stage.

During the pouring process, the temperature of the molten iron must be monitored using infrared pyrometers to ensure it stays within the range of 1,350°C to 1,450°C. Inconsistent temperatures can lead to internal porosity or “cold shuts,” which weaken the structural integrity of the caliper body. Quality control at this stage often includes spectroscopic analysis to verify the chemical composition of each melt batch.

Phase 2: Cleaning and Stress Relieving

Once the casting has solidified, the housing undergoes “shakeout” to remove the sand mold and internal cores. This is followed by shot blasting, where steel abrasives are used to clean the surface and reveal any superficial defects. For heavy-duty brake repair kits and housings, surface cleanliness is vital for the later application of anti-corrosion coatings.

Internal stresses built up during the rapid cooling of the casting can lead to warping during machining. To mitigate this, many factories implement a heat treatment process known as annealing. This stabilizes the molecular structure of the iron, ensuring that the critical dimensions of the piston bore remain stable throughout the component’s service life in the aftermarket.

Phase 3: Precision CNC Machining Operations

The transition from a raw casting to a functional housing occurs in the machining center. Precision is the priority here, as the tolerances for the piston bore and seal grooves are often measured in microns. Modern facilities utilize multi-axis CNC machines to perform drilling, tapping, and boring in a single setup, which minimizes cumulative errors.

The piston bore is the most critical feature, requiring a surface roughness (Ra) of 0.4 or better to prevent fluid leaks. Specialized honing tools are used after the initial boring to achieve a mirror-like finish. For suppliers of caliper pistons and housings, the interface between these two parts determines the efficiency of the entire air disc brake system.

Phase 4: Surface Treatment and Corrosion Protection

Commercial vehicles operate in harsh environments, exposed to road salt, moisture, and debris. Consequently, the caliper housing must undergo rigorous surface treatment. Common methods include zinc-nickel plating or eco-friendly epoxy e-coating. According to ASTM International, salt spray testing (often exceeding 500 hours) is the industry standard for validating the corrosion resistance of automotive underbody components.

A high-quality finish not only prevents rust but also ensures that the brake caliper parts remain movable over years of service. For the heavy-duty aftermarket, where longevity translates directly to lower Total Cost of Ownership (TCO), superior coating technology is a significant competitive advantage for Chinese manufacturers.

Quality Control and Final Inspection

The final stage of production involves multi-point inspections. Each housing is subjected to high-pressure leak testing, where air or hydraulic fluid is injected to check for porosity or machining flaws. Coordinate Measuring Machines (CMM) are used to verify that the geometry of the housing matches the original CAD specifications.

In the context of the global “Right to Repair” movement, as highlighted by Auto Care Association, aftermarket parts must meet or exceed the performance of Original Equipment (OE). Standardized testing ensures that a replacement housing will provide the same clamping force and heat dissipation as the part it replaces.

Strategic Sourcing for the Aftermarket

For distributors and fleet managers, sourcing brake caliper housings requires a balance of cost-efficiency and technical reliability. China has become a global hub for commercial vehicle parts, offering a robust supply chain that integrates foundries and machining centers. By focusing on ISO 9001 and IATF 16949 certified factories, buyers can ensure they receive components that withstand the rigors of heavy-duty transport.

Frequently Asked Questions

1. What are the common signs of a failing brake caliper housing?

A failing housing typically manifests through visible fluid leaks around the piston seal or uneven brake pad wear caused by a warped body. In commercial vehicles, a cracked housing may lead to a sudden loss of air pressure. Regular inspections should prioritize checking for corrosion and structural hairline fractures.

2. Why is ductile iron preferred over aluminum for truck calipers?

While aluminum reduces weight, ductile iron offers the superior structural rigidity and thermal stability required for heavy-duty air brake systems. Commercial vehicles generate immense heat during braking; ductile iron maintains its shape under these temperatures better than most lightweight alloys, preventing “caliper spread.”

3. How does the machining of the piston bore affect brake performance?

The piston bore’s surface finish directly impacts the longevity of the rubber seals. If the bore is too rough, it will abrade the seal, leading to hydraulic or air leaks. If the tolerance is too loose, the piston may tilt, causing “cocking” and uneven braking force distribution.

4. Can a damaged brake caliper housing be repaired or remanufactured?

While seals and pistons can be replaced, a structurally compromised housing—such as one with a cracked body or stripped mounting threads—should generally be replaced rather than repaired. Professional remanufacturers will only reuse housings that pass ultrasonic testing and meet original dimensional specifications.

5. What role does heat treatment play in the manufacturing process?

Heat treatment, specifically stress relieving or annealing, ensures that the casting does not deform after machining. This process stabilizes the metal, ensuring that the precise tolerances achieved in the factory remain consistent even after the component is subjected to extreme operational heat cycles.
