How to Test Truck ABS Solenoid Valve Coil with a Multimeter

The Anti-lock Braking System (ABS) is a critical safety component in modern commercial vehicles, and knowing how to test truck ABS solenoid valve coil with a multimeter is an essential skill for fleet maintenance. This technical guide provides a step-by-step procedure to diagnose electrical failures in solenoid coils, ensuring your heavy-duty braking system remains compliant with safety standards. By following this professional troubleshooting process, technicians can accurately identify whether a malfunction stems from the truck ABS solenoid valve or external wiring issues.

Understanding the Role of the ABS Solenoid Valve Coil

The ABS solenoid valve coil acts as an electromagnetic actuator that controls air pressure delivered to the brake chambers during an ABS event. When the ABS electronic control unit (ECU) detects wheel lock-up, it sends electrical pulses to these coils to modulate braking force. A faulty coil often results in an illuminated ABS warning light and a stored fault code related to open or short circuits.

Commercial vehicle operators must recognize that a solenoid coil is essentially a continuous loop of copper wire. Resistance testing is the primary method used to verify the integrity of this internal winding. If the coil is damaged due to heat, vibration, or moisture ingress, it will fail to generate the necessary magnetic field to move the internal plunger, compromising the vehicle’s stopping capabilities.

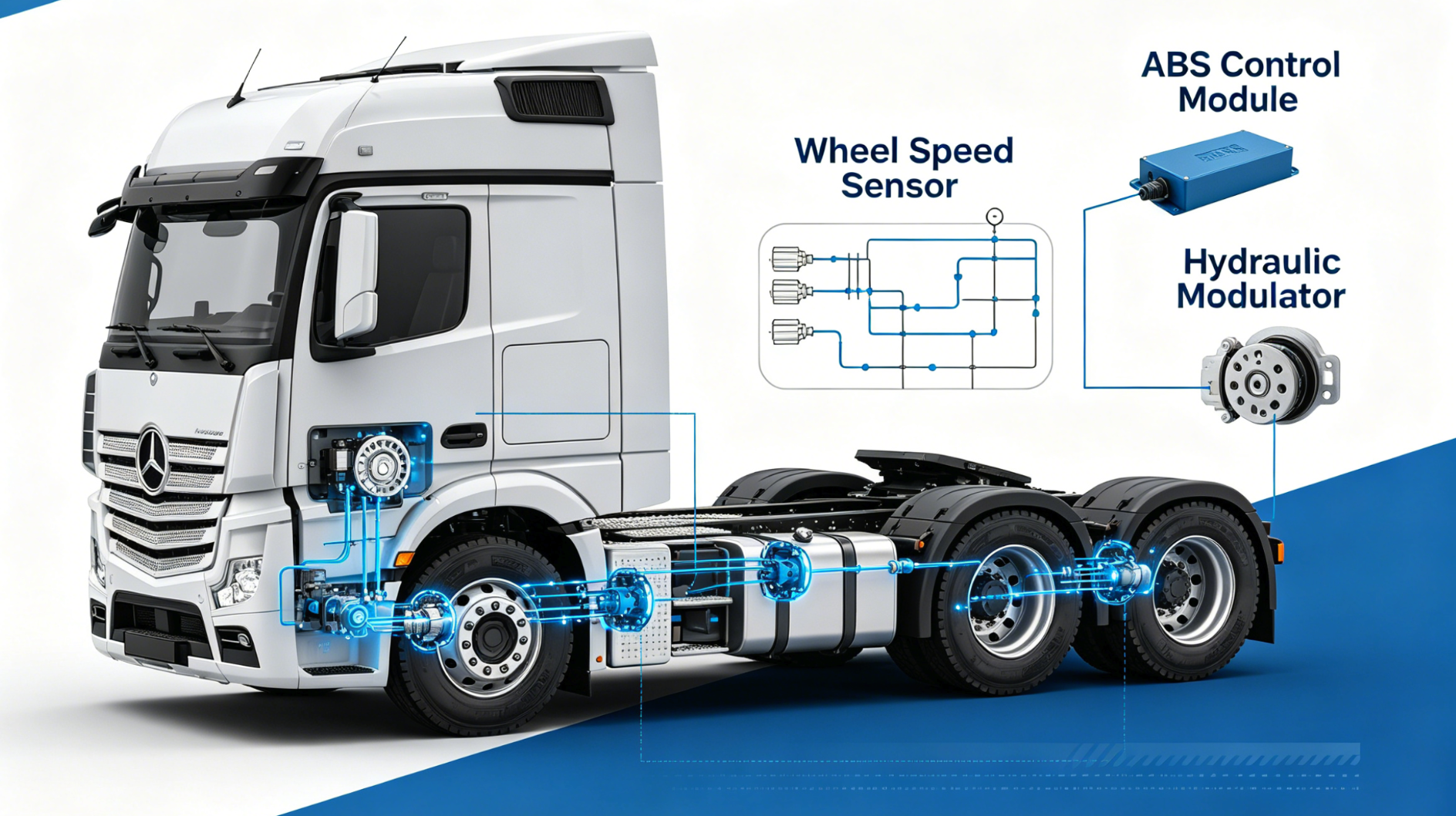

Truck ABS

Tools Required for Diagnostic Testing

Accurate diagnostics require professional-grade equipment to ensure precise resistance readings. A digital multimeter (DMM) with an accuracy of at least 0.5% is recommended for testing commercial vehicle brake systems. Unlike basic test lights, a multimeter can detect subtle changes in resistance that indicate partial short circuits or high-resistance connections.

Tool Name Specification/Requirement Purpose
Digital Multimeter Ohms (Ω) setting, Auto-ranging preferred Measuring coil resistance and continuity
Back-probe Pins Fine-tipped insulated probes Accessing connector terminals without damage
Contact Cleaner Fast-evaporating electronic grade Removing oxidation from solenoid pins
Service Manual Vehicle-specific OEM wiring diagram Verifying pinouts and resistance specs

Step-by-Step Guide: How to Test Truck ABS Solenoid Valve Coil

Before beginning the electrical test, ensure the vehicle is parked on a level surface with wheels chocked and the air system fully charged. Safety is paramount when working around heavy-duty truck brake chambers.

1. Preparation and Visual Inspection

Locate the ABS modulator valve assembly, typically found near the axles. Disconnect the electrical harness connector from the solenoid. Inspect the connector pins for signs of corrosion, bent pins, or “green rot” (copper oxidation). According to the Commercial Vehicle Safety Alliance (CVSA), electrical corrosion is a leading cause of roadside ABS failures.

2. Setting Up the Multimeter

Turn the multimeter dial to the Ohms (Ω) position. If your meter is not auto-ranging, select the 200Ω scale. Touch the two probes together to verify the meter reads 0.0 to 0.3Ω; this accounts for lead resistance. Precise measurement is vital because most truck solenoid valves have very low nominal resistance.

3. Measuring Coil Resistance

Insert the multimeter probes into the solenoid connector terminals. For a standard 3-pin ABS modulator (Supply, Exhaust, and Common), you must test both the “Supply” and “Exhaust” coils relative to the common ground pin.

  • Expected Values: Most 24V commercial ABS solenoids should return a resistance between 10Ω and 20Ω.
  • Open Circuit: A reading of “OL” or “1″ indicates a broken internal wire.
  • Short Circuit: A reading significantly below 10Ω (e.g., 2Ω) suggests internal insulation failure.

4. Testing for Short to Ground

Set the multimeter to the highest Ohms range or continuity mode. Place one probe on a solenoid terminal and the other on the valve’s metal body. Any reading other than “OL” (infinite resistance) indicates an internal short to the housing, which will blow fuses or damage the ABS ECU.

Comparison of Common Solenoid Coil Faults

Different failure modes require different corrective actions. Using a high-quality automatic slack adjuster ensures mechanical parity, but the electrical side depends entirely on coil health.

Failure Mode Multimeter Reading Likely Cause Recommended Action
Open Circuit Infinite / OL Thermal stress or vibration breakage Replace solenoid valve
High Resistance > 30 Ohms Terminal corrosion or frayed internal wire Clean pins; re-test; replace if persistent
Short to Ground < 1M Ohm to Case Housing seal failure or moisture ingress Immediate replacement required
Intermittent Fluctuating values Loose internal connection Replace valve to prevent road failure

Impact of Faulty Coils on Braking Performance

A malfunctioning ABS solenoid coil does more than just trigger a dashboard light; it alters the pneumatic balance of the vehicle. If a coil fails in the “closed” position, the wheel may not receive the “pressure dump” command during an emergency stop, leading to tire flat-spotting or a jackknife incident.

Industry data from the National Highway Traffic Safety Administration (NHTSA) suggests that properly functioning ABS can reduce heavy truck involvement in multi-vehicle crashes significantly. Therefore, maintaining electrical integrity in components like the truck brake caliper shell and its associated valves is a matter of regulatory compliance and operational safety.

ScreenShot_2026-05-23_150617_599

Professional Maintenance Checklist

To prevent unexpected downtime, incorporate these checks into your preventative maintenance (PM) schedule.

  1. Dielectric Grease: Apply a small amount to connectors to prevent moisture-induced corrosion.
  2. Harness Routing: Ensure ABS cables are not rubbing against the heavy-duty brake pads or chassis rails.
  3. Voltage Supply: Verify the ABS ECU is providing a clean 24V signal to the solenoids under load.
  4. Ground Integrity: Ensure the chassis ground for the ABS system is free of rust.

Technical Specifications: 24V vs 12V Systems

While most global commercial trucks utilize 24V systems, some medium-duty vehicles operate on 12V. Resistance values differ between these architectures. A 12V coil typically has lower resistance (often 4Ω to 8Ω) compared to its 24V counterpart. Always consult the Society of Automotive Engineers (SAE) standards or the specific manufacturer’s datasheet before condemning a part based on resistance alone.

Summary of Diagnostic Conclusions

Testing a truck ABS solenoid coil is a definitive way to separate mechanical air leaks from electrical logic errors. If your resistance measurements fall outside the 10-20Ω range for 24V systems, the solenoid is defective. Consistently monitoring these values as part of a brake system maintenance program reduces the risk of expensive “parts-hanging” and ensures that only truly failed components are replaced.

Frequently Asked Questions (FAQ)

What is the most common cause of ABS solenoid coil failure?

The most frequent cause is moisture ingress combined with road salt, which leads to internal corrosion or “green rot” at the connector pins. High-frequency vibrations also cause fatigue in the thin copper windings, eventually resulting in an open circuit that triggers a fault code.

Can I clean a solenoid coil instead of replacing it?

You can clean the external connector pins with electronic contact cleaner to resolve high-resistance issues. However, if the internal copper winding is shorted or broken (yielding an “OL” reading), the unit is non-serviceable and must be replaced to ensure the safety of the truck’s braking system.

Is it safe to drive with a failed ABS solenoid valve?

While the primary pneumatic brakes will still function, the anti-lock feature will be disabled on at least one axle. This increases the risk of wheel lock-up and loss of steering control during emergency braking, and the vehicle may fail Department of Transportation (DOT) safety inspections.

Why does my multimeter show 0 ohms across the coil?

A 0-ohm reading indicates a dead short circuit, where the internal insulation has melted and the wires are touching. This condition typically draws excessive current, which can blow the ABS fuse or potentially damage the internal drivers within the expensive ABS electronic control unit.

Does temperature affect ABS solenoid resistance readings?

Yes, copper resistance increases as temperature rises. A coil tested immediately after a long haul may show slightly higher resistance than one tested in a cold shop. Always allow the component to reach ambient temperature for the most accurate comparison against the manufacturer’s technical specifications.
